9000
4

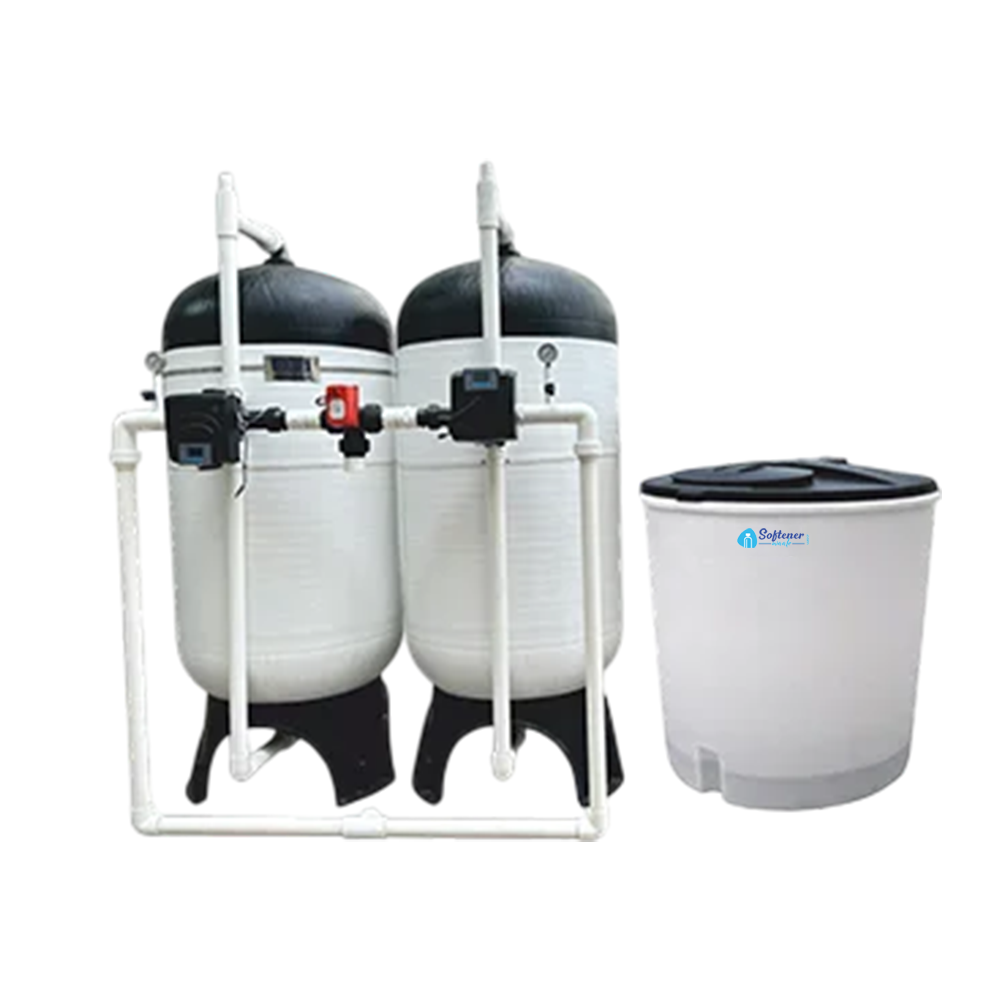

A Twin Tank Water Softener is a high-efficiency water treatment system designed to deliver uninterrupted soft water 24/7. It features two resin tanks — while one is in service, the other regenerates, ensuring there's no downtime. This setup is ideal for areas with high water usage, as it prevents hardness-related issues such as scale buildup, skin irritation, and appliance wear. With automatic regeneration and fail-safe switching, it's a reliable solution for both residential and commercial use.
Specially Designed Three way ceramic core ball valve fixed at outlet of both tanks.
Display - Current time, remaining soft water & current flow.
Brine Tank with Brine Valve, Brine well and perforated Disk.
BFT Technology helps to make fully automated operation with pump, water level controller and Softener.
Incorporated with pressure relief SV and sampling valve.
Can be used before and after soft water storage tank.
Can be used at Hotel, Hospital, Hostel and entire colony.
One Working one stand by Resin tank to make sure 24x365 days continuous soft water supply.
Fully Automatic microprocessor-Controlling operation.
Property | Value |
Max. Flow Rate | 9000 LPH |
OBSA (Basis on 200 ppm) | 1350000 Ltr |
OBR (Basis on 200 ppm) | 450000 Ltr |
Resin Tank Volume | 1000 + 1000 Ltr |
Resin Quantity | 1800 Ltr |
Salt Tank Volume | 2000 Ltr |
Salt Required / Regeneration | 270 kg |
Salt Qty.(OBSA) / No's of Regeneration | 810 kg / 3 + 3 |
Working Pressure | 0.15 - 0.6 MPA |
Inlet-Outlet Size | 2" |
